Lateral Movement Tracing

Lateral movement is one of the most critical phases to reconstruct during an incident response engagement. Once an attacker gains initial access, they typically authenticate to additional systems using stolen credentials, RDP, PsExec, WMI, or SMB to reach high-value targets such as domain controllers and file servers. This guide walks through a systematic approach to mapping that movement across your environment using IRFlow Timeline.

Features Used

• Lateral Movement Tracker -- visualize host-to-host logon connections as a network graph
• Stacking -- frequency analysis to surface unusual logon patterns
• Process Inspector -- trace execution chains spawned after lateral movement
• Bookmarks and Tags -- bulk-tag events across the lateral movement chain
• Color Rules -- highlight logon types and suspicious accounts at a glance
• Search and Filtering -- isolate specific hosts, accounts, and time windows

Key Artifacts

Windows Security Event IDs

Event ID	Log Channel	Description
4624	Security	Successful logon
4625	Security	Failed logon attempt
4648	Security	Logon using explicit credentials (runas, PsExec)
4776	Security	NTLM credential validation (logged on DC)
4672	Security	Special privileges assigned to new logon

RDP-Specific Event IDs

Event ID	Log Channel	Description
1149	TerminalServices-RemoteConnectionManager	RDP authentication succeeded (source IP logged)
21	TerminalServices-LocalSessionManager	Session logon succeeded
22	TerminalServices-LocalSessionManager	Shell start notification
24	TerminalServices-LocalSessionManager	Session disconnected
25	TerminalServices-LocalSessionManager	Session reconnected

Logon Types

Logon Type	Name	Typical Lateral Movement Technique
2	Interactive	Console logon, unlikely over network
3	Network	SMB, PsExec (service creation), WMI, PowerShell Remoting
10	RemoteInteractive	Remote Desktop (RDP)
3 with 4648	Explicit Credentials	runas /netonly, PsExec with -u flag, scheduled tasks

Artifact Paths

Artifact	Path
Security EVTX	C:\Windows\System32\winevt\Logs\Security.evtx
TerminalServices RCM	C:\Windows\System32\winevt\Logs\Microsoft-Windows-TerminalServices-RemoteConnectionManager%4Operational.evtx
TerminalServices LSM	C:\Windows\System32\winevt\Logs\Microsoft-Windows-TerminalServices-LocalSessionManager%4Operational.evtx
Sysmon Operational	C:\Windows\System32\winevt\Logs\Microsoft-Windows-Sysmon%4Operational.evtx
Prefetch (PsExec)	C:\Windows\Prefetch\PSEXESVC.EXE-*.pf

---

Step-by-Step Workflow

1. Load Security and RDP Logs

Import the relevant EVTX logs or their EvtxECmd CSV output into IRFlow Timeline. If you collected from multiple hosts using KAPE, use multi-tab mode to open each host in a separate tab, then merge the tabs into a single unified timeline.

At minimum, include the Security log and both TerminalServices channels from every host in scope. Sysmon logs are strongly recommended for correlating post-logon process execution.

Merge for Full Visibility

Lateral movement is inherently multi-host. Merging logs from the source and destination systems into a single timeline makes it possible to see both sides of each connection in chronological order.

2. Apply Color Rules for Logon Types

Before diving into analysis, set up color rules to visually distinguish logon types at a glance:

Condition	Suggested Color	Rationale
EventID = 4624 AND LogonType = 10	Blue	RDP logon
EventID = 4624 AND LogonType = 3	Green	Network logon (SMB/WMI/PsExec)
EventID = 4648	Amber	Explicit credential usage
EventID = 4625	Red	Failed logon -- may indicate password spraying

This makes it immediately obvious which rows represent lateral movement when scrolling through the timeline.

3. Stack Logon Activity to Find Anomalies

Open the Stacking panel and analyze the following columns to quickly identify outliers:

• Stack on TargetUserName -- look for accounts with unusually high logon counts or accounts that should not be authenticating across many systems (e.g., a help desk account appearing on DC01).
• Stack on Computer (destination host) -- identify which systems received the most logon events. A workstation like WS001 receiving hundreds of Type 3 logons from other workstations is abnormal.
• Stack on IpAddress (source) -- a single source IP appearing across many destination hosts may indicate an attacker pivoting from a compromised system.
• Stack on LogonType -- get the overall distribution. A large volume of Type 10 logons during off-hours warrants investigation.

Sort Ascending for Rare Values

Sort stacking results in ascending order to surface values that appear only once or twice. Attackers often leave fewer traces than legitimate services, so rare logon source/destination pairs stand out.

4. Open the Lateral Movement Tracker

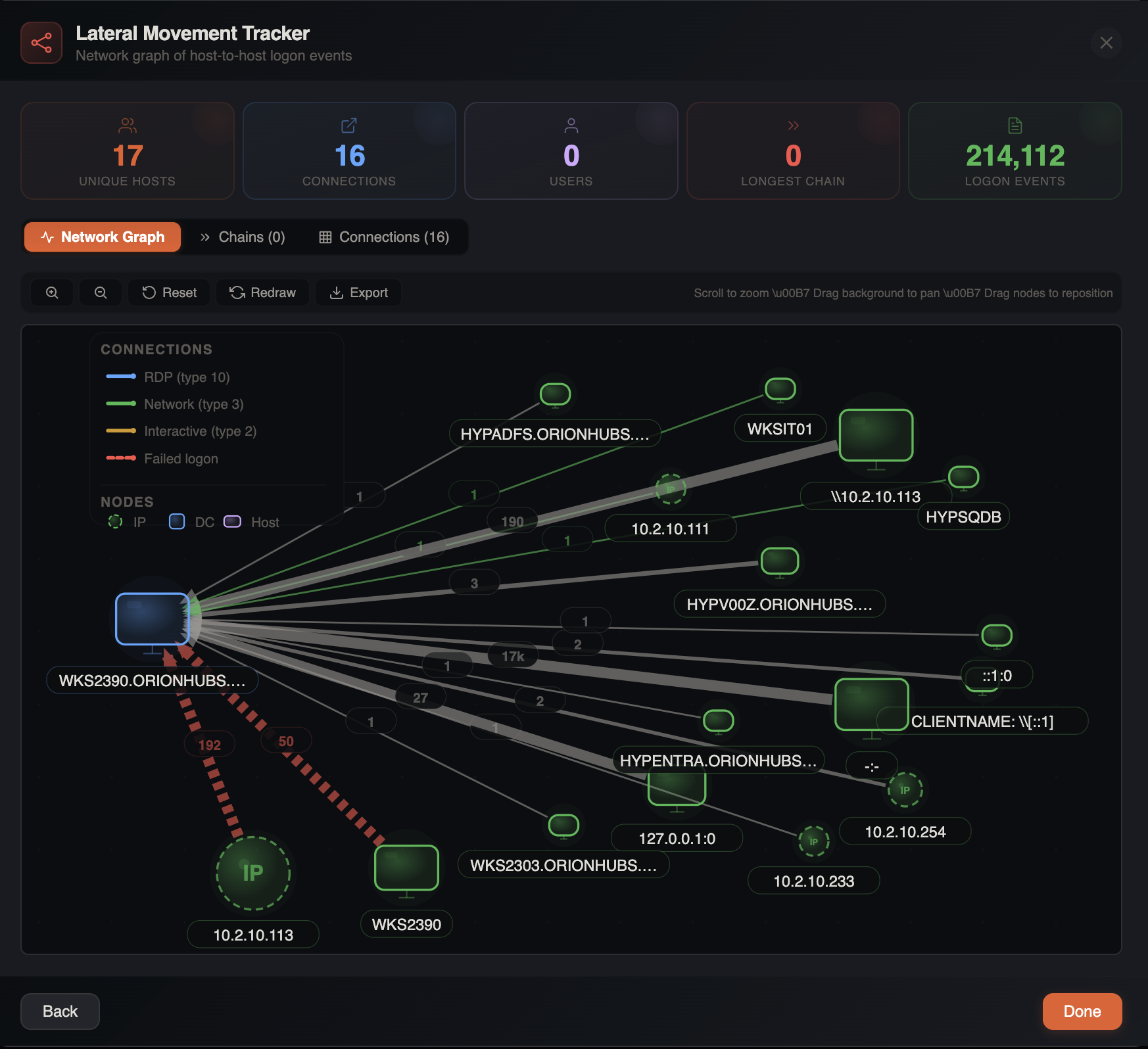

Navigate to Tools > Lateral Movement Tracker to open the Lateral Movement Tracker. The tracker automatically parses your logon events and builds an interactive network graph.

In the graph view:

• Blue edges represent RDP connections (Type 10)
• Green edges represent network logons (Type 3)
• Amber edges represent interactive logons (Type 2)
• Edge labels show the number of logon events between each host pair
• Arrows indicate the direction of authentication (source to target)

The tracker also automatically flags outlier hostnames -- nodes with default Windows names (DESKTOP-XXXXX, WIN-XXXXX), penetration testing distro defaults (KALI, PARROT), or generic/suspicious names (ADMIN, TEST, HACKER). These are highlighted in the graph and often indicate attacker-controlled machines that were never properly renamed.

Look for the following patterns:

Pattern	Significance
WS001 -> DC01 -> FS02	Multi-hop chain -- attacker pivoted from workstation to DC to file server
Single source with many outbound edges	Possible staging host or C2 beachhead
Outlier-flagged node with outbound connections	Likely attacker machine -- default/generic hostname not matching environment naming convention
Workstation-to-workstation connections	Unusual in most environments -- warrants investigation
Bi-directional edges between two hosts	May indicate interactive RDP sessions with file transfers

5. Trace Multi-Hop Chains

Switch to the Chains sub-tab within the Lateral Movement Tracker. This view automatically detects multi-hop lateral movement paths by linking sequential logon events.

A typical attacker chain might appear as:

WS001 → WS014 → DC01 → FS02

This tells you the attacker moved from their initial foothold (WS001) through an intermediate workstation, then to the domain controller, and finally to the file server -- a pattern consistent with credential harvesting on the DC followed by data access on FS02.

Correlate Chains with Time

Click on any chain to filter the main grid to those events. Verify that the timestamps follow a logical progression. If the logon on DC01 occurred 3 minutes after the logon on WS014, this supports a deliberate lateral movement sequence rather than coincidental service account activity.

6. Identify the Lateral Movement Technique

Once you have identified suspicious host-to-host connections, filter the main grid to events between those hosts and determine the technique:

PsExec indicators:

• Event ID 4648 (explicit credentials) on the source host
• Event ID 4624 with LogonType 3 on the destination host
• Event ID 7045 (new service installed) for PSEXESVC on the destination
• Sysmon Event ID 1 showing PSEXESVC.EXE spawning cmd.exe or powershell.exe

WMI indicators:

• Event ID 4624 with LogonType 3 on the destination host
• Sysmon Event ID 1 showing WmiPrvSE.exe as parent process
• The spawned process runs under the remote user's context

RDP indicators:

• Event ID 4624 with LogonType 10 on the destination host
• Event ID 1149 in TerminalServices-RemoteConnectionManager
• Events 21, 22 in TerminalServices-LocalSessionManager
• Events 24, 25 if the session was disconnected and reconnected

SMB / net use indicators:

• Event ID 4624 with LogonType 3
• Event ID 5140 (network share accessed) on the destination
• No corresponding service installation or process creation

7. Examine Post-Logon Execution with Process Inspector

For each destination host where lateral movement was confirmed, open the Process Inspector and filter to the relevant time window. Focus on:

• Processes spawned by PSEXESVC.EXE -- these are the commands the attacker ran via PsExec
• Child processes of WmiPrvSE.exe -- commands executed via WMI
• Processes launched within the RDP session (typically under explorer.exe for the logged-on user)
• Any LOLBin execution (highlighted in orange by the Process Inspector) shortly after the lateral logon event

This reveals what the attacker did after arriving on each host -- credential dumping, reconnaissance, staging tools, or accessing sensitive data.

8. Bulk-Tag the Lateral Movement Chain

Once you have mapped the full lateral movement path, select all related events across the chain and use Bulk Tagging to label them consistently:

• Tag source-side events (e.g., 4648 on WS001) with lateral-movement-source
• Tag destination-side logon events (e.g., 4624 on DC01) with lateral-movement-destination
• Tag post-logon execution events with post-lateral-execution
• Tag credential harvesting evidence (e.g., LSASS access) with credential-access

This structured tagging ensures that when you build your final report, every event in the lateral movement chain is accounted for and can be exported cleanly.

Use Consistent Tag Naming

Establish a tag naming convention early in the investigation. Tags like lat-move-1, lat-move-2 for each distinct hop make it easy to reconstruct the sequence during report writing and peer review.

9. Correlate with Failed Logons

Do not overlook Event ID 4625 (failed logons). Filter for failed logons originating from the same source hosts identified in your lateral movement chain. Patterns to watch for:

• A burst of 4625 events followed by a 4624 -- indicates password guessing or credential testing before a successful logon
• Failed logons to many hosts from a single source -- the attacker is probing for access across the network
• Failed logons using multiple accounts -- credential spraying with a harvested account list

Use the Histogram to visualize the frequency of failed versus successful logons over time. A spike in 4625 events immediately before lateral movement is a strong indicator of active credential testing.

10. Document Source-Destination Pairs

As a final step, switch to the Connections sub-tab in the Lateral Movement Tracker to get a tabular summary of every source-destination-user-logontype combination. Export this table as part of your case documentation.

A properly documented lateral movement table should include:

Timestamp (UTC)	Source Host	Destination Host	Account	Logon Type	Technique	Tag
2026-02-24 02:14:33	WS001 (10.1.2.50)	WS014	CORP\jsmith	10 (RDP)	RDP	lat-move-1
2026-02-24 02:31:07	WS014 (10.1.2.64)	DC01	CORP\admin_js	3 (Network)	PsExec	lat-move-2
2026-02-24 02:44:52	DC01 (10.1.1.10)	FS02	CORP\admin_js	3 (Network)	SMB	lat-move-3

---

Next Steps

• Malware Execution Analysis -- trace what the attacker deployed after moving laterally
• Persistence Hunting -- check each host in the chain for persistence mechanisms
• Brute Force and Account Compromise -- deeper analysis of credential attacks that enabled the lateral movement
• Ransomware Investigation -- if lateral movement led to ransomware deployment across the domain
• Building a Final Report -- compile your tagged lateral movement chain into a deliverable report
